“ConF V5” Series

“ConF V5” Series

by Balancing Valve & Automatic Balancing ValveHONEYWELLProduct

“ConF V5” Series

2-Way, Constant Flow Balancing Valve

Features :

  • Size from 2” to 20”
  • In this balanced valve design, the constant flow cartridge moves up and down with system pressure fluctuating to keep the flow constant
  • No power need in the constant flow modulating
  • Every loop automatically limited to design flow
  • Robusting design save the installation space
  • Simplified pipe design and calculation
  • Quick and easy setup
  • No balancing debug work required
  • Stainless steel valve stem resists corrosion & long service life
“ConF V2” Series

“ConF V2” Series

by Balancing Valve & Automatic Balancing ValveHONEYWELLProduct

“ConF V2” Series

2-Way, Constant Flow Balancing Valve

Features :

  • Size from ½” to 1 ½”
  • In this balanced valve design, the constant flow cartridge moves up and down with system pressure fluctuating to keep the flow constant
  • No power need in the constant flow modulating
  • Every loop automatically limited to design flow
  • Robusting design save the installation space
  • Simplified pipe design and calculation
  • Quick and easy setup
  • No balancing debug work required
  • Stainless steel valve stem resists corrosion & long service life
V4-BLC-GP16

V4-BLC-GP16

by Balancing Valve & Automatic Balancing ValveHONEYWELLProduct

V4-BLC-GP16

Flanged Balancing and Shut Off Valve

Features :

  • Balancing through stroke limitation with digital pre-setting and visible pre-setting indicator
  • Equipped with 2 pressure test cocks for differential pressure measurement
  • Non rising spindle with EPDM and EPDM O-ring sealing
  • Pre-setting isn’t altered when handwheel is turned
  • Regulation screw protected by protection cap
  • PTFE seat sealing
  • Valve cartridge and spindle made of cast steel
  • Nominal pressure 16 Bar or 125 Psi
  • Available in dimensions up to DN400
  • Flange BS4504 PN16 or ANSI B16.1 Class 125. Other flange types are available.

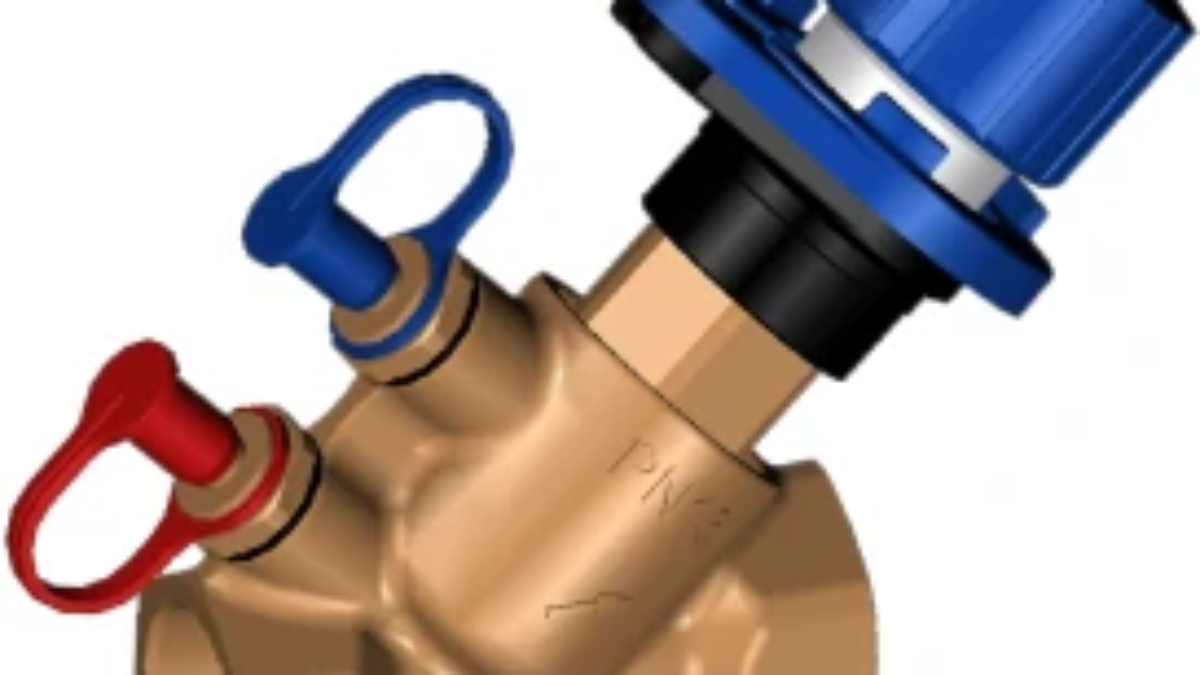

V5032

V5032

by Balancing Valve & Automatic Balancing ValveHONEYWELLProduct

V5032

Double Regulating Balancing Valve

Features :

  • Dimensions DN15 to DN40 can be retrofitted with a Kombi-Diaphragm Unit
  • Operating pressure max. 16 bar (232 psi)
  • High accuracy of the pre-seting because of individual Adjustment
  • Robust valve body made of corrosion resistant red bronze
  • Availabe in sizes up to DN80
  • Visible pre-setting dial with concealed pre-setting wheel
  • Maintenance free spindle with double O-ring sealings
  • PTFE seat sealing

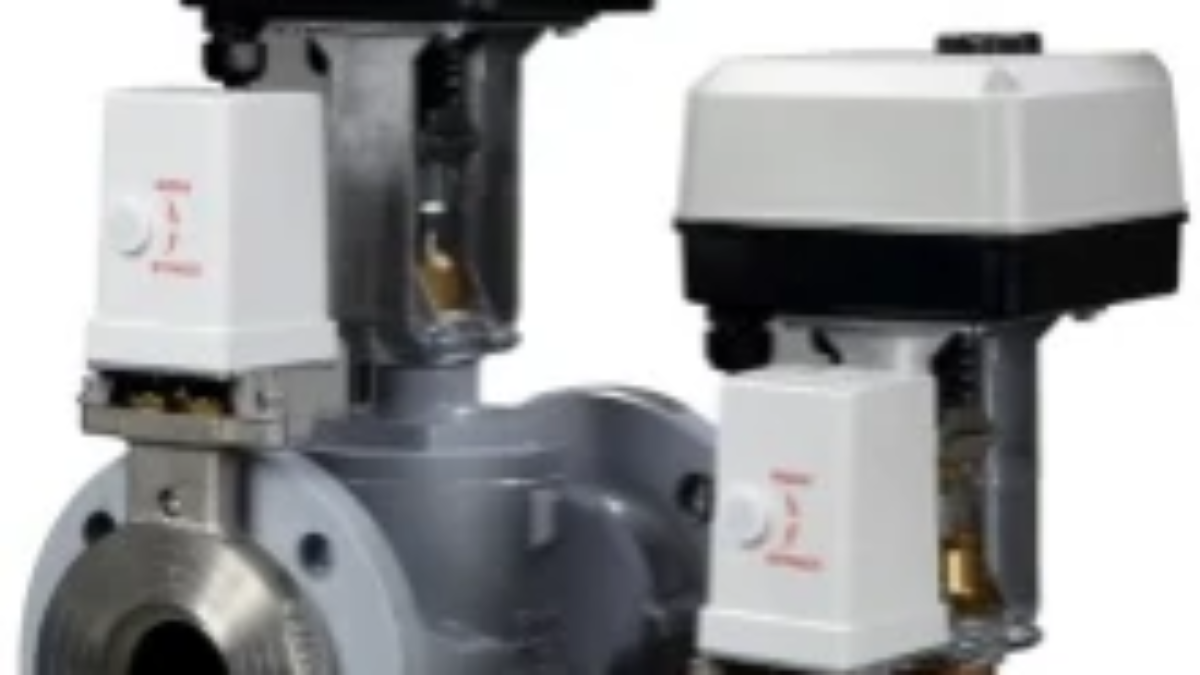

Kombi 9

Kombi 9

by Balancing Valve & Automatic Balancing ValveHONEYWELLProduct

Kombi 9

Pressure Independent Integrated Balancing Control  Valve

Features :

  • Integrated functions as linear temperature control, pressure independent and electric regulating into one valve
  • Output the valve position signal to BAS for system variable differential pressure control of variable flow water system, ensure HVAC water system can always operate in the most energy-saving mode
  • High control accuracy, strong anti-interference capacity
  • Allow wide range of pressure fluctuation difference for the system
  • Simple calculation in designing the pipeline system
  • Easy installation
  • Convenient for commissioning at site
