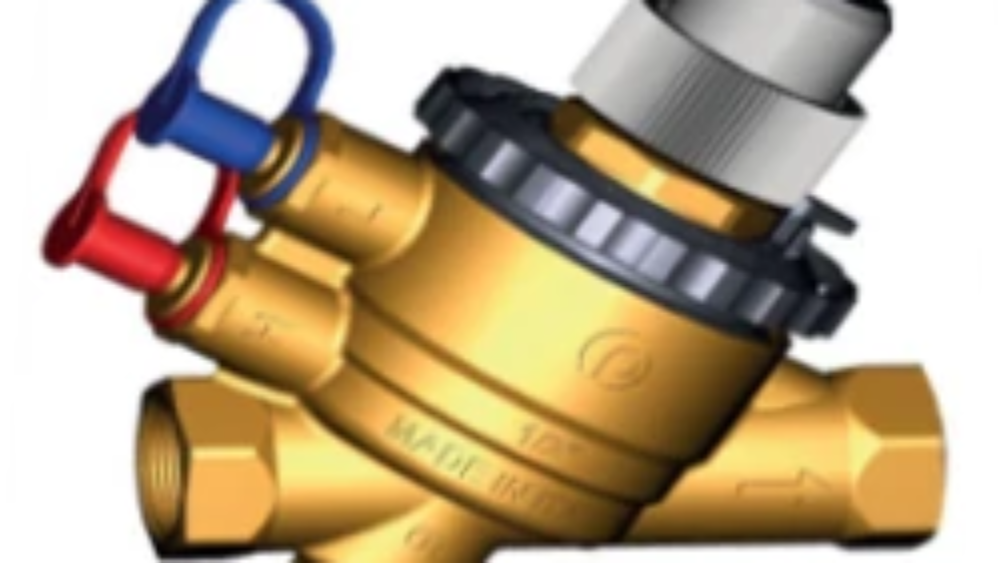

Kombi QM
Pressure Independent Balancing and Control Valve
Features :
√ Automatic pressure independent balancing and control
- Precise pressure independent flow performance
- Highest energy saving potential due to efficient energy transfer and minimized pump speed
- Integrated measuring possibility to find the optimal setpoint for the pump
- Reduced movements of actuators as pressure fluctuations do not influence the required temperature
- No complex calculation needed for selection
- No balancing method needed for commissioning
√ Wide range of application
- Sizes DN15 up to DN150
- Various versions to support standard flow rates as well as low flow and high flow needs
- Covers two functions in one valve which reduces mounting costs
√ Easy commissioning
- Pre-setting with visual flow scale at the valve
- Pre-setting by hand without the need of tools
- Pre-setting possible even when the system is running and an actuator is already mounted
- Can balance a system even if only parts of a building are in operation
√ Maintenance friendly
- Emergency shutoff function with plastic cap – not for permanent use
- Measuring possibility for problematic applications
